SPECIFICATIONS

Acceptable Voltage Range: AC 110-220V

After-sale Service: Online Technical Support,Other

Application: Hotel,Villa,Apartment,Office Building,Hospital,School,Mall,Sports Venues,Leisure Facilities,Supermarket,Warehouse,Workshop,Park,Farmhouse,Courtyard,Other,Kitchen,Bathroom,Home Office,Living Room,Bedroom,Dining,Babies and Kids,Outdoor,Storage and Closet,Exterior,Wine Cellar,Entry,Hall,Home Bar,Staircase,Basement,Garage and Shed,Gym,Laundry

Brand Name: YODNIX

Certifications: CE ROHS ISO

Design Style: Contemporary

Feature: Durable

Heating System: Electric

Material: Graphene,PET

Model Number: YH-110230

Packing: Inner Box

Place of Origin: Jiangsu, China

Power: 140W/㎡±10%

Project Solution Capability: graphic design,3D model design,total solution for projects,Cross Categories Consolidation,Others

Type: Electric Heating

Voltage: 110-230V

Warranty: More Than 5 Years

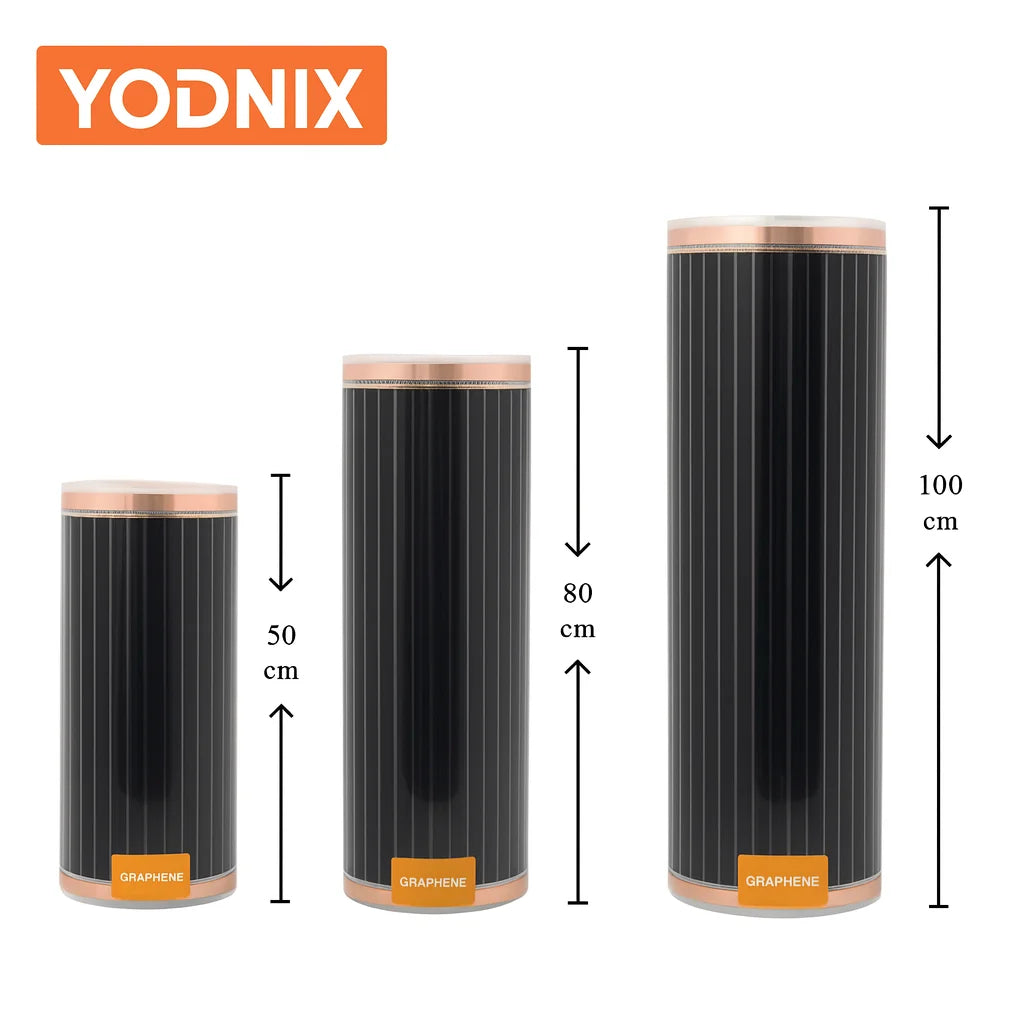

Width: 50cm 80cm 100cm Optional

relay: 15 A,10A,20A,5 A

The advantages of electrothermal film are as follows:

1. The high voltage resistant electric heating film can withstand a test voltage of up to 3000V without breakdown.

2. The anti-aging materials for manufacturing electric heating film are all special materials with good characteristics,

ant-aging, non deterioration, stable performance and long service life.

3. The moisture resistant electric heating film is made of polyester film and is waterproof as a whole.

4. High toughness. According to testing, he tensile resistance of the electrothermal film is about 20GK.

5. Small shrinkage. In aging tests, the shrinkage rate is minimal.

6. After testing, the performance and size of the electrothermal film have not changed significantly after 26000 hours of

continuous operation at a surface temperature of 40℃.

7. Fully advanced heat sealing process ensures full polymerization between membranes without bubbles or delamination, ensure a close combination of the heating element and the current carrying strip.

8. The endurance radio thermal film can operate safely in an environment of- 20℃-50℃.

9. Brownian motion produces far infrared rays.

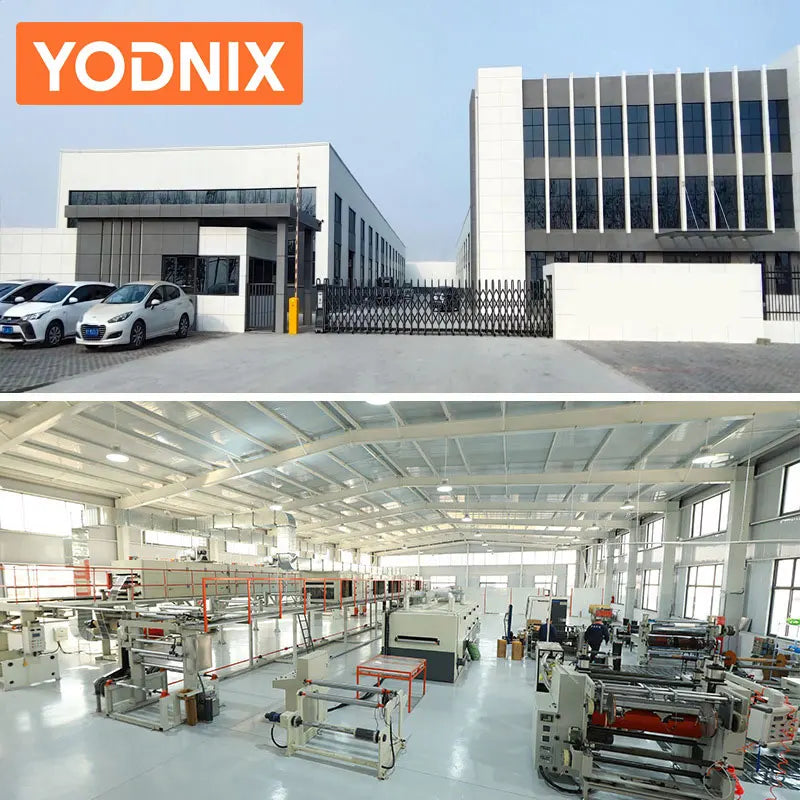

10.Our company is the source production factory of graphene electrothermal film, supporting customization: voltage, power, width,color, etc. providing free design services.

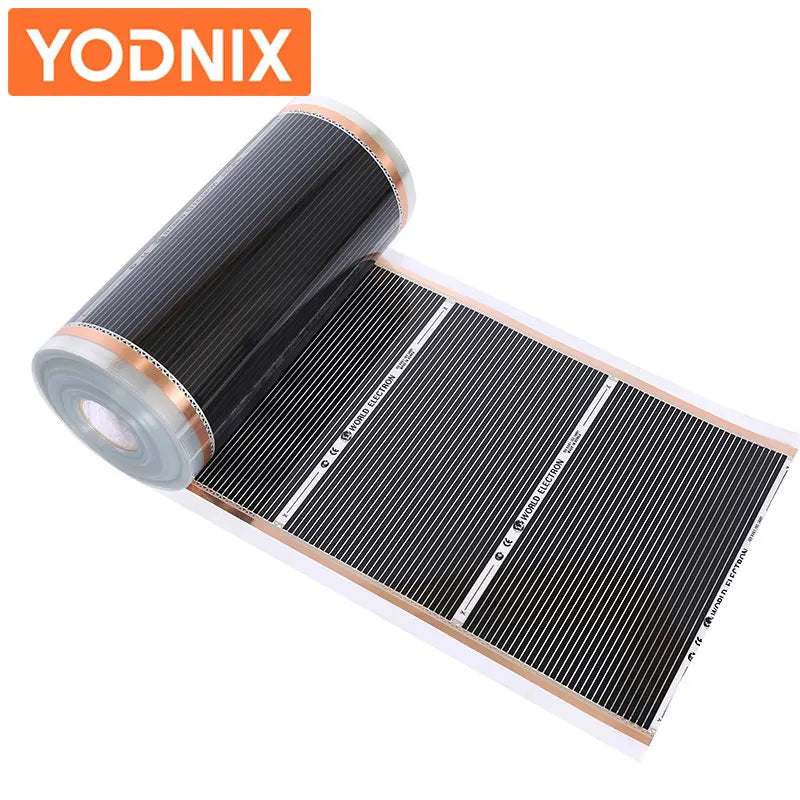

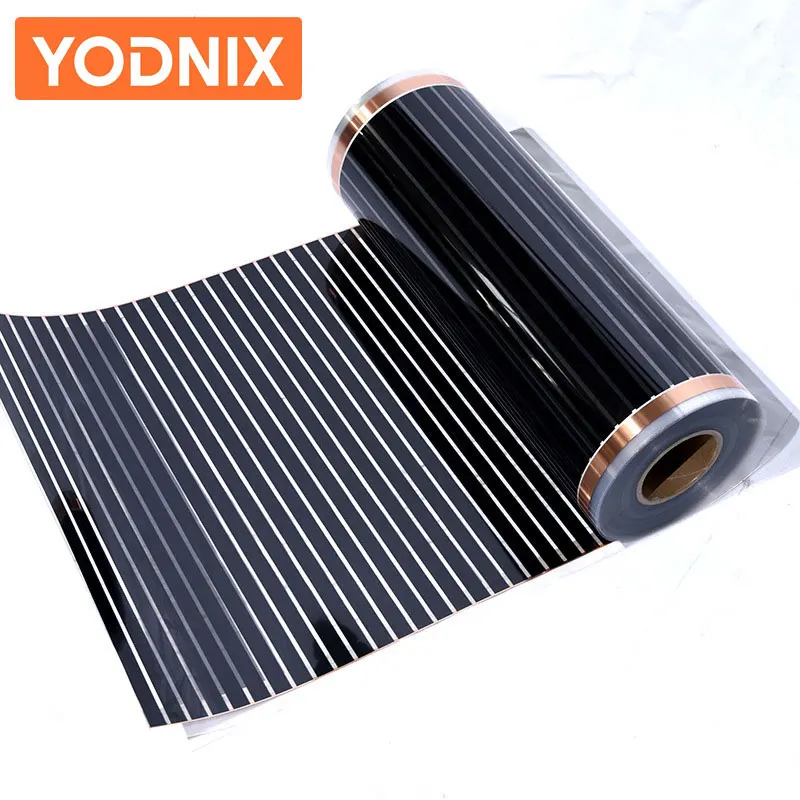

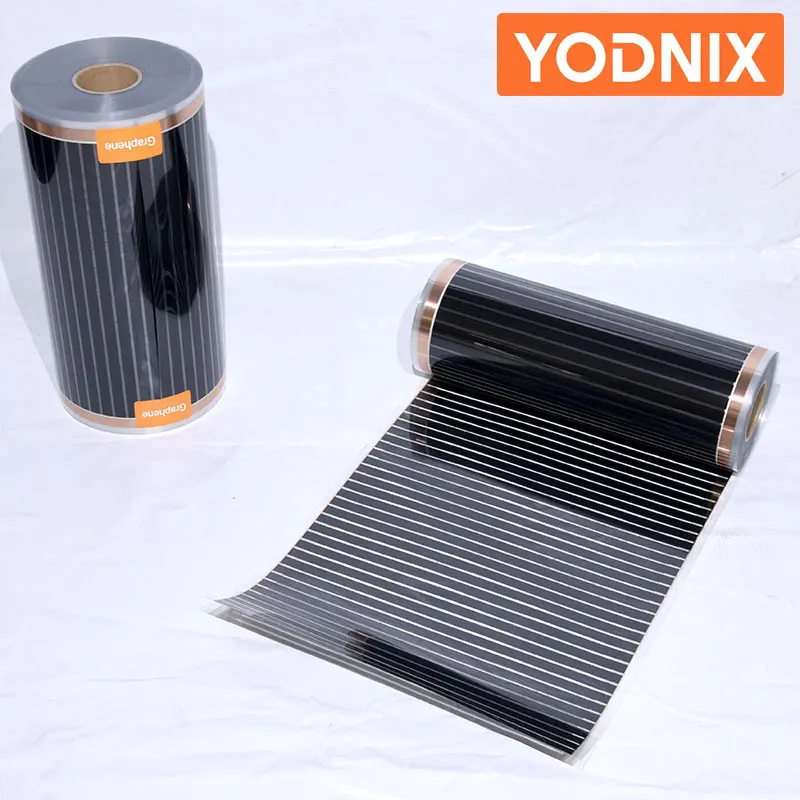

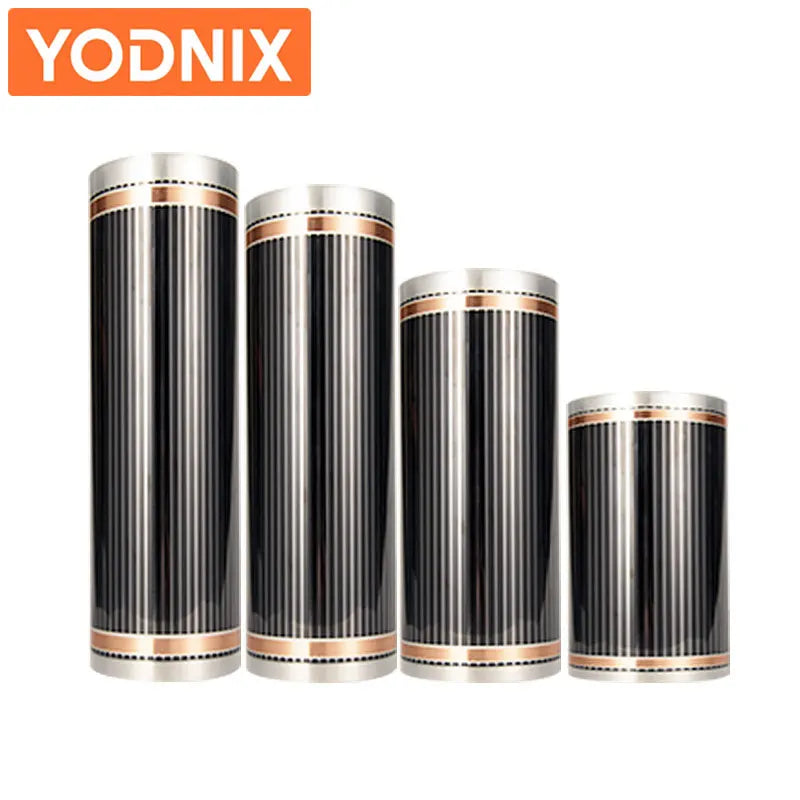

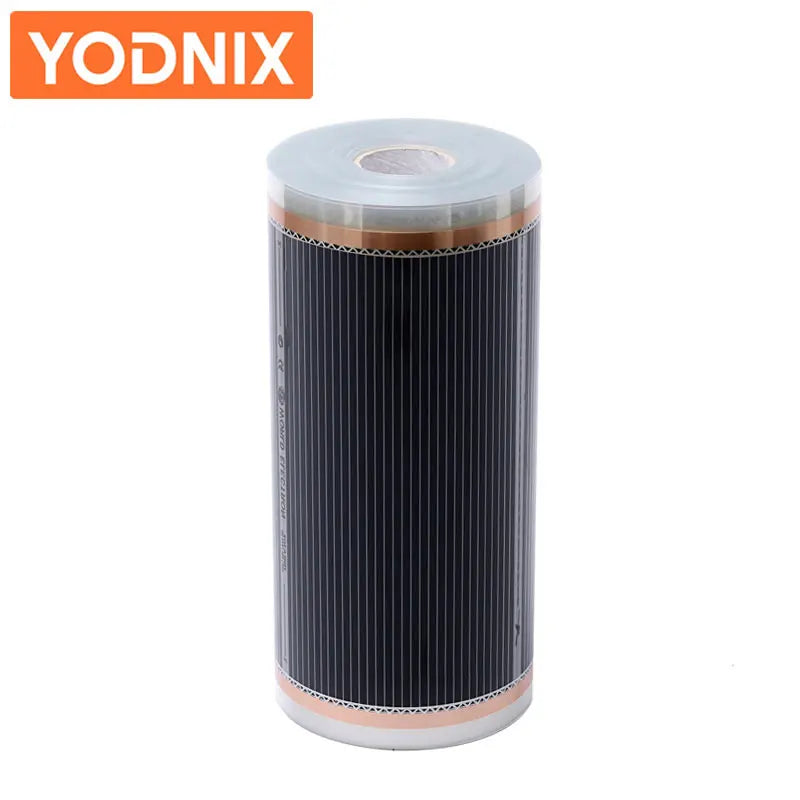

Product Name	Graphene Underfloor Heating Film
Material	Graphene Carbon, Pure copper strip,Silver paste
Color	Black
Shape	Strip
11Power	220W/m²
Mains Voltage	110V；220V
Heating Film Size	50cm/80cm/100cm
Heating Fim Thickness	0.338mm
Copper strip width	15mm
Silver paste width	14mm
Carbon paste width	13mm
Cutting line	25cm of each
Heating Film Sample	Free(The shipping cost will be borne by the buyer)
Heating Film Warranty	5 years
Film melting point	180 ℃
The share of IR rays in the total spectrum	95.60%
Efficiency of converting electricity into thermal energy	96%-98%
Surface temperature can achieve after covering	in the range from 39 to 49 ℃
Feature	No PTC; Work with a thermostat
Average daily electricity consumption with thermostat	30-40 W/㎡

FAQ

about company：

How do I pay for YODNIX?
1.T/T wire transfer
2.YODNIX can send the PayPal invoice to you and you can using the PayPal account or credit card to payment.
3.YODNIX also can accept the western union.

FAQ about product:
1.Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat.This will allow for simple and more accurate temperature control of each room and will avoid heating rooms which do not require it.

2.Is this a safe product to put in my home or business?
Yes. All our floor heating solutions endure rigorous development and quality control testing to ensure that your floor heating system is reliable and safe.

3.Can I use Heating Film with my floor material? What if my project uses an underlayment?
Heating Film is compatible with a wide variety of floor materials like vinyl, laminate, and carpet. Let us know if you have any questions because we are here to help. One note you should keep in mind is that Heating Film is not rated for wet areas like bathrooms. Heating Film is compatible with any underlayment you would use in an installation, including a pre-attached underlayment like some vinyl floors have.

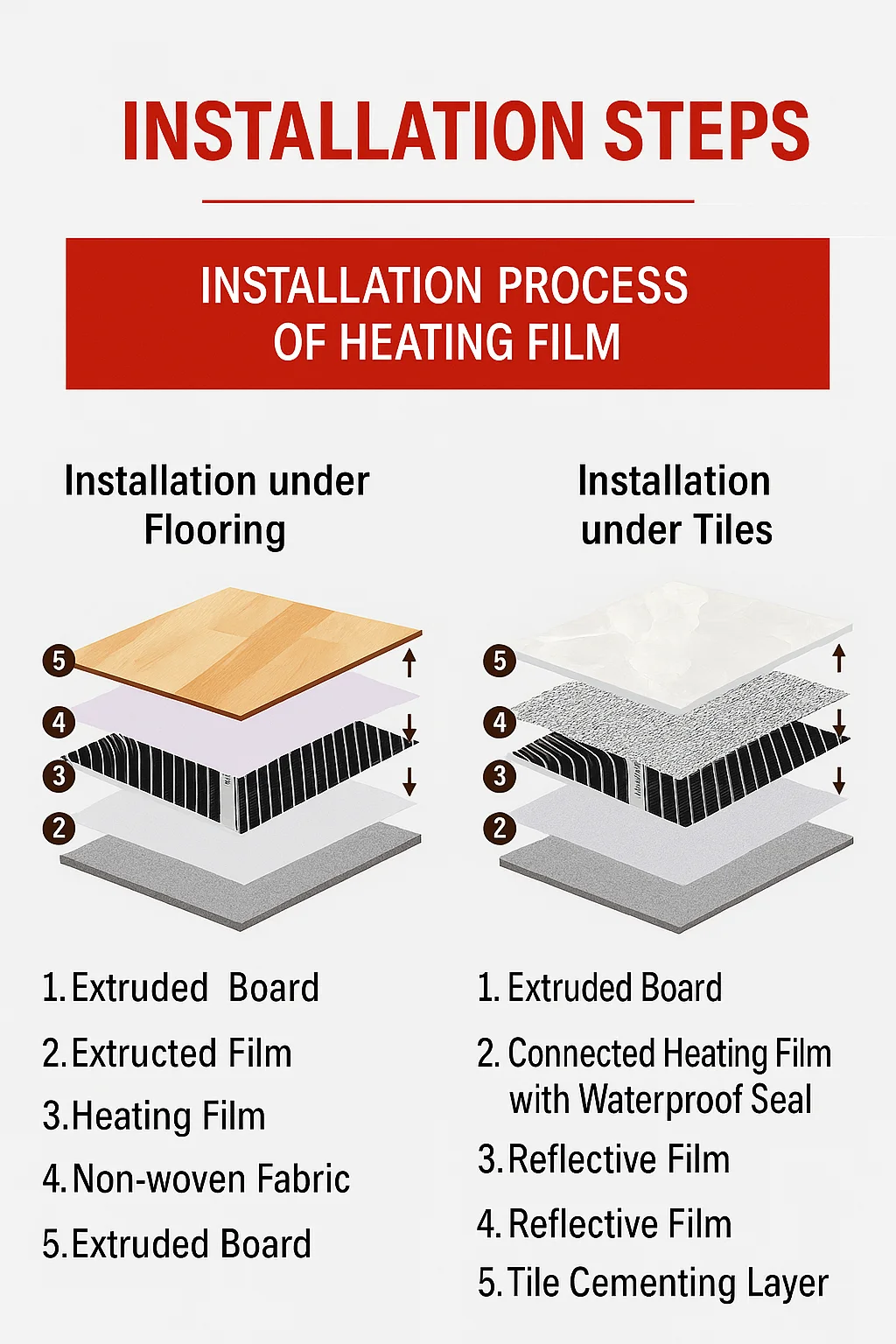

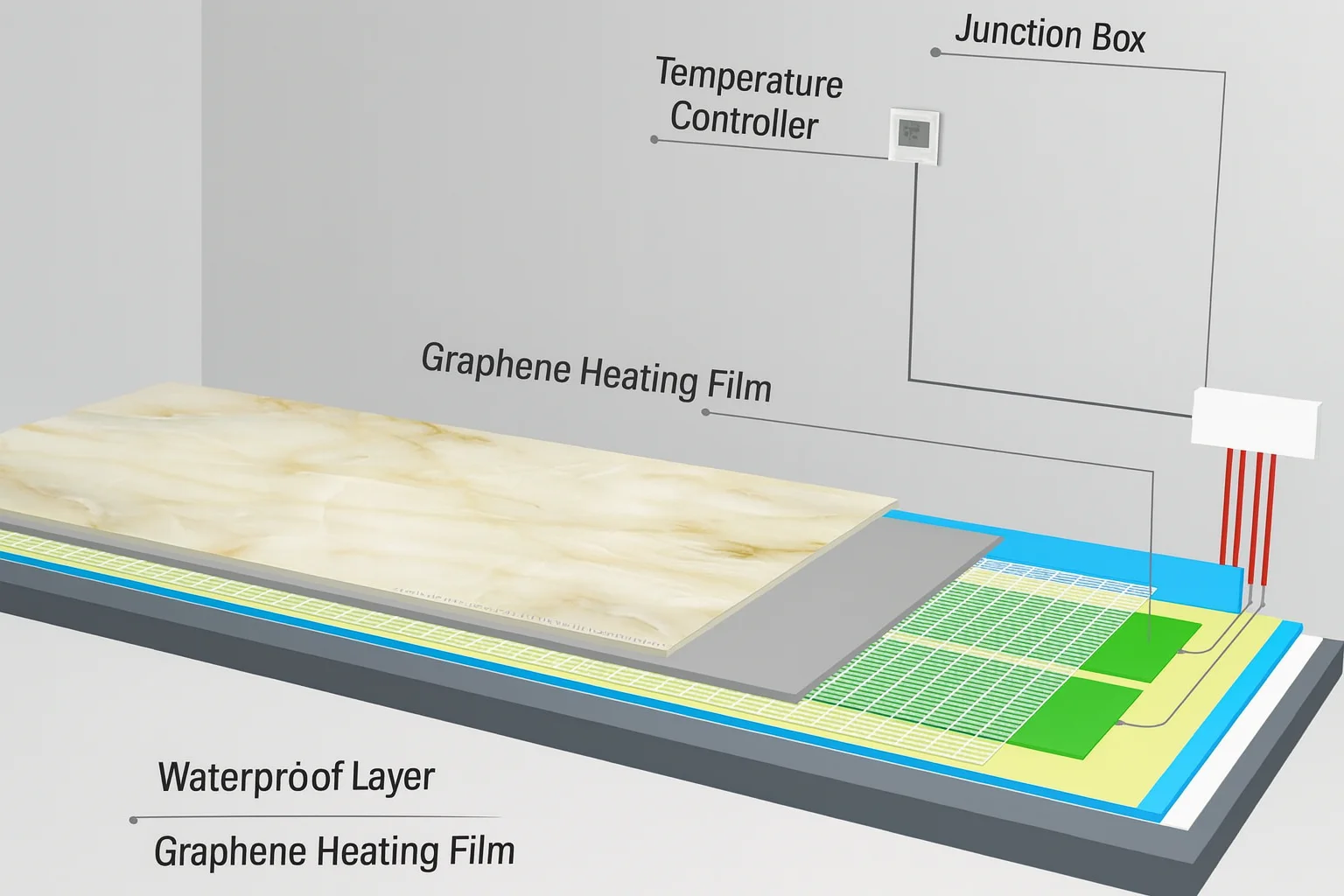

4.How do I install Heating Film? How does it all get connected?

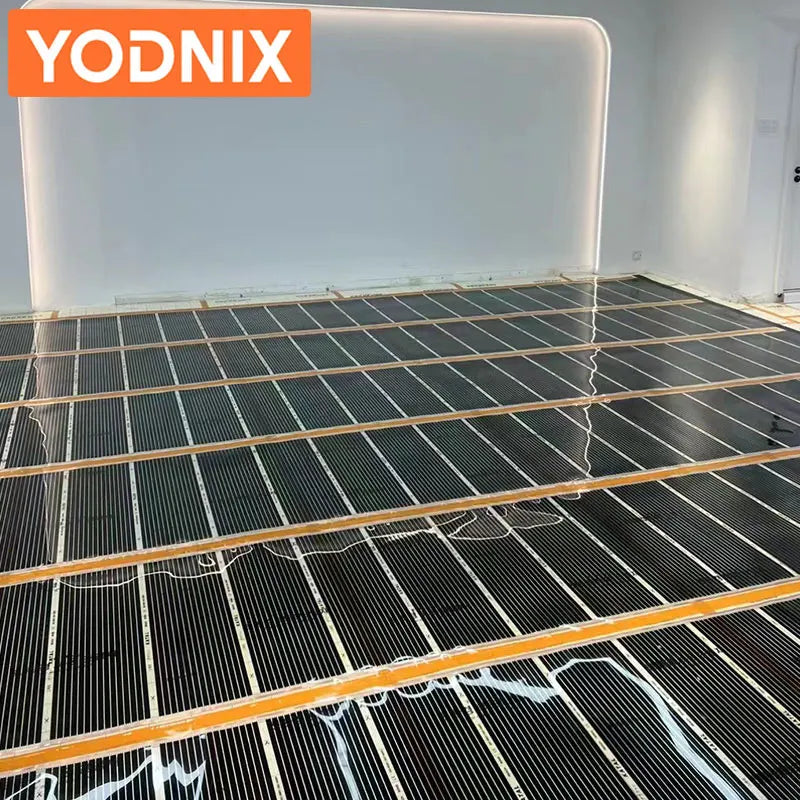

Heating Film installs directly under a floating floor and is compatible with a variety of underlayment options. Simply lay out
your underlayment and then position Heating Film above the under layment. You can also install Thermo Film under an MDF layer.Heating Film mats are then wired in parallel to a floor heating thermostat. The number of mats and layout of the room will affect the exact process of how to wire the heating mats together. Please see the Installation Manual for explicit directions or call us anytime for assistance.

5.Will this add height to my floor?
Heating Film will add up to about 1/32nd of an inch to your floor height. Depending on the type of floor coverings or the
potential presence of an underlayment padding, this height may end up being negligible according to industry standards on floor height deviation allowances.

6.How does electric radiant heat work?
Electric radiant heat works by arranging conductive heating elements through your floor to provide gentle but noticeable heat traveling up from the floor, providing an efficient and luxurious effect in your home or commercial space.

7.What type of floors can be heated with ThermoSoft systems?
If you can walk on it, we can heat it! Our diverse array of underfloor heat systems can be applied under any floor covering. The key is matching the right radiant heating product with the right installation method, and of course, this is just one of the things you can call us to get help with anytime!

8.How long will ThermoFilm last? How long is the warranty?
Heating film requires no regular maintenance once installed correctly and if left undisturbed (remember your radiant system is down there when planning a remodel!). The heating mats are warrantied for 10 years, but after 17 years being on the market, we have yet to see a ThermoFilm mat fail due to old age. The thermostats that we offer are warrantied for 3 years because we only use thermostats with GFCI protection which, per national electric code, is recommended to be replaced every 3 years. Replacing a thermostat is simple, easy, and inexpensive.
