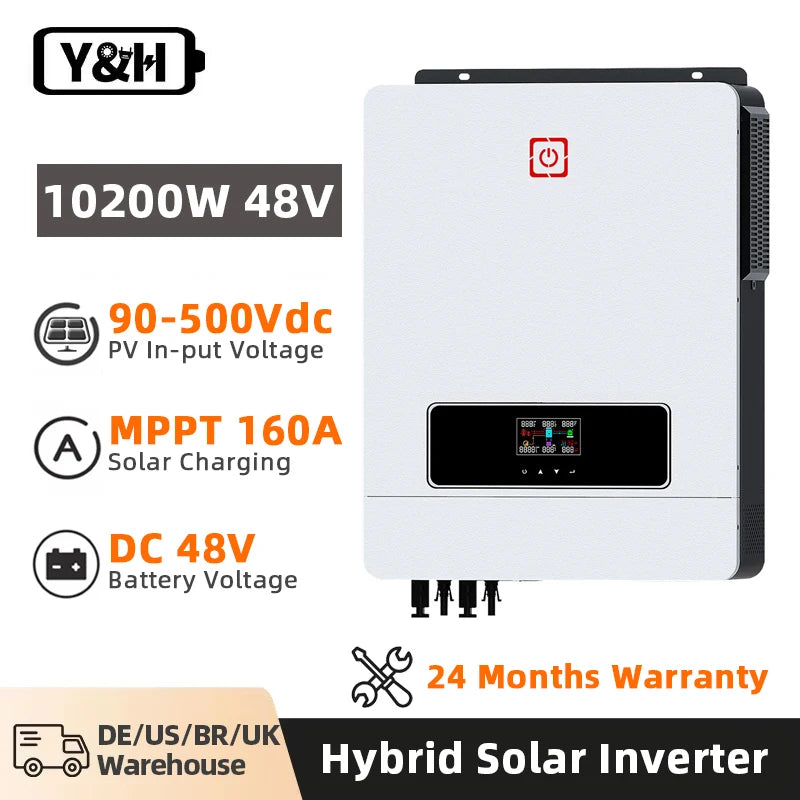

Inversor Solar híbrido Y & H de 10,2 kW/6,2 kW, inversor de red de encendido/apagado, inversor de onda sinusoidal pura de 48V y 220V, controlador de carga MPPT 160A/120A
Inversor Solar híbrido Y & H de 10,2 kW/6,2 kW, inversor de red de encendido/apagado, inversor de onda sinusoidal pura de 48V y 220V, controlador de carga MPPT 160A/120A
SPECIFICATIONS
Certificación: certificado
Corriente de salida: MPPT-160A
Dispositivo Inteligente: SÍ
Feature 1: Daul PV Input
Feature 2: inverter 8000 watts
Feature 3: inverter 48v hybrid
Feature 4: Use with Solar PV System
Feature 5: inverter Pure sine wave
Feature 6: solar power inverter
Feature 7: hybrid ongrid inverter
Feature 8: network injection inverter
Frecuencia de salida: 50Hz/60Hz(Auto sensing)
Max Charging Current (AC charger plus solar charger): 160Amp,160Amp
Max.PV Array Open Circuit Voltage: 500Vdc
Max.PV Array Power: 10200W
Maximum PV Input Power: 10200W
Nombre de la marca: Y&H
Nominal Output Voltage: 220/230/240VAC
Número de modelo: MPS
Origen: CN(Origen)
Output Voltage Waveform: Pure Sine Wave
Peso: 16KG
Potencia de salida: 1 - 200 kilovatios
Producto químico de alta preocupación: Ninguno
Tamaño: 537mm*390mm*130mm
Tipo de salida: soltero
Type: On-Grid/Off-Grid
es personalizado: Sí
Note：DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER
Dual AC output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.
Otherwise, you don't need to connect to the second output.
Features of 48VDC solar power inverter：
Daul PV In-Put and Second Output
160A 10.2KW on/off Grid Inverter
1.Pure sine wave solar inverter（on/off Grid）
2.Inverter running without battery
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC)
5.WIFI&GPRS available for IOS and Android
6.Built-in anti-dusk kit for harsh environment
7.Built-in 160A（for 10.2KW）MPPT solar charge
8.Smart battery charge design to optimize battery life
9.One-click restoration to factory Settings
10.Dual output
11.Built-in Lithium battery automatic activation
12.Touch buttom
Basic System Architecture:
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Pure sine Wave Inverter:
10200KW Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, dual MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)
Four modes can be choose when charging battery:
Utility first: Utility will charge battery as first priority source, then Solar Power.
Solar first: Solar will charge battery as first priority source, then Utility Power.
Solar and Utility(default): Solar Power and Utility power will charge battery at the same time.
Only Solar: Solar Energy as the only source charge battery.
Three Output modes can be choose：
Utility first (default):Utility will provide power to theloads as first priority, Then Solar Power, battery Power
Solar first: Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power.
SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time.
New features:
Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load
WIDE RANGE OF USES：
MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest
Parameters:
INVERTER MODEL |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
48Vdc |
|
High DC Recovery Voltage |
62Vdc |
|
High DC Cut-off Voltage |
63Vdc |
|
No Load Power Consumption |
70W |
75W |
Two Load Output Power |
||
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
48VDC |
|
Utility Charging Mode |
||
AC Charging Current(Max) |
140Amp |
160Amp |
Floating Charging Voltage |
54Vdc |
|
MPPT Solar Charging Mode |
||
Max.PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~500Vdc |
|
Max.PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
160Amp |
160Amp |
Grid-Tie Operation |
||
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
49~51±1Hz/59~61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
98% |
|
General Specifications |
||
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage temperature |
-15C~60℃ |
|
Humidity |
5%to 95% Relative Humidity(Non-condensing) |
|
Dimension(D*W*H),mm |
537*390*130 |
|
Net Weight,kg |
14.2 |
14 |
